Insulation Paper Inserting Machine

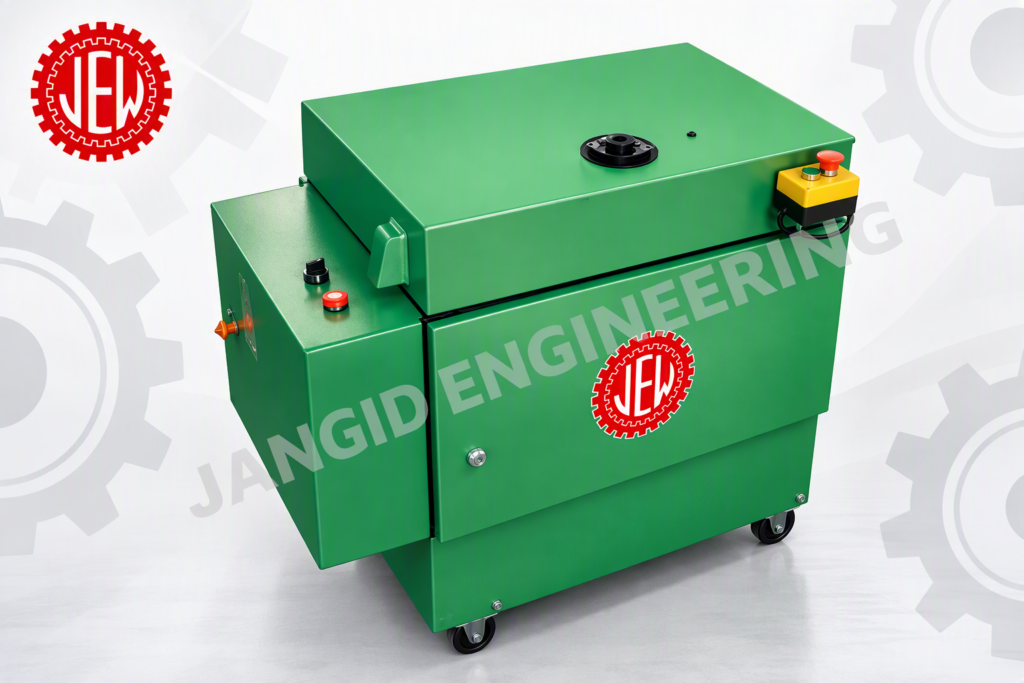

Automatic Insulation Paper Inserting Machine
Model No : C – 300
This Machine Inserts Cell Paper or Insulation Paper before Winding into Stampings to Protect the enamel coating of copper wire. It takes 7 seconds for a complete stator and 1 Machine can supply 6 Coil Winding Machines.
- Paper: Any grade
- Speed:2 slots per seconds
- Power: 440V AC 50 Hz, 220 V AC available on request
- Drive Motor: 3 Phase 1 Hp Induction Motor with thermal overload protection
- Power Consumption : 1 Kw
- Dimensions:470 *800*700mm
- Weight:300 Kgs
- Production: Average 350 Pcs per Hour*
CNC Automatic Wedge Paper Insertion Machine
CNC Automatic Wedge Paper Insertion Machine
Model No : C – 400
This Machine inserts wedge paper after winding and it takes 7 seconds for a complete stator. 1 machine can supply 6 coil winding machines
- Paper: Any grade
- Speed:2 slots per seconds
- Power: 440V AC 50 Hz, 220 V AC available on request
- Drive Motor: 3 Phase 1 Hp Induction Motor with thermal overload protection
- Power Consumption : 1 Kw
- Dimensions:470 *800*700mm
- Weight:300 Kgs
- Production: Average 350 Pcs per Hour*
Table Fan Paper Inserting Machine
Table Fan Paper Inserting Machine
Model No : C-500
Specially designed for Table Fan, Cooler & Ventilator Fan stamping of various models.
- Paper: Any grade
- Max Speed:2 slots per seconds
- Power: 220 V AC or 440V AC as per the model.
- Drive Motor:3 Phase 1 HP induction motor with thermal overload protection
- Power Consumption: 1 Kw
- Dimensions:470 *800*700mm
- Weight:300 Kgs
- Production: Average 250 Pcs per hour*
Automatic Paper Inserting Machine for High Speed Lamination
Automatic Paper Inserting Machine for High Speed Lamination
Model No : SPM C-600
Specially designed for high speed stamping as it have different slots placements, other specifications same as paper inserting machine.
- Control: CNC with Steeper Motor
- Paper: Any grade
- Max Speed:6 pole 12 slots in just 8 seconds
- Power: 440V AC 50Hz, 220 V AC available on request.
- Drive Motor:3 Phase 1 HP induction motor with thermal overload protection
- Power Consumption: 1 Kw
- Dimensions:470 *800*700mm
- Weight:300 Kgs
- Production: Average 400 Pcs per hour*
Automatic Wedge Paper Inserting Machine
Automatic Wedge Paper Inserting Machine
Model No : SPM C-700
This Machine inserts wedge paper after winding and it takes 7 seconds for a complete stator. 1 machine can supply 6 coil winding machines.
- Control: CNC with Steeper Motor
- Paper: Any grade
- Max Speed:6 pole 12 slots in just 8 seconds
- Power: 440V AC 50Hz, 220 V AC available on request.
- Drive Motor:3 Phase 1 HP induction motor with thermal overload protection
- Power Consumption: 1 Kw
- Dimensions:470 *800*700mm
- Weight:300 Kgs
- Production: Average 400 Pcs per hour*
