Pump Motor Coil Winding Machines
Pump Motor / Induction Motor / Mono Block Motor Coil Winding Machines

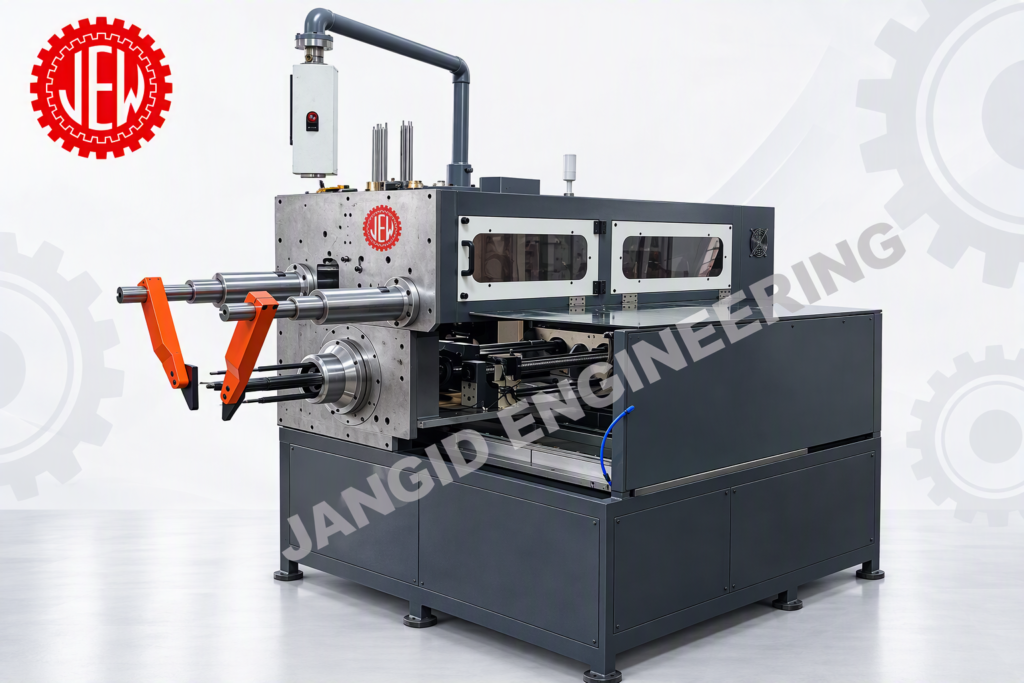

This Coil Winding Machine can wind upto 40 Coils in a single go. This was made possible with our innovative solution. Setting parameters is very easy with CNC Controller TF-54, By Simply providing stack and DaCC Sizes, numbers of turns to wind & wire diameter, it wil automatically adjust itself to give a neat finish coil. Ultra highspeed maximizes your production without compromising quality.
- Spindles: 1
- Drive: Single
- Power: 220V, 50Hz Single Phase
- Wire gauge: 24 to 42 SWG
- Dacc thickness: 10mm – 80mm
- Coil size: 30mm – 245mm
- Traverse movement: 150mm Customizable
- Traverse motor: stepper motor
- Max speed: 4000 RPM
- Motor: 3 phase, 1HP A/C Induction Motor
- Dimentions: 1400 X 800 X 900mm
- Net weight: 170 kg
- Max Power Consumption: 1 Kw
- Production : Average 40 Coil Farmers Per Hour*
Pump Motor Paper Inserting Machine
Pump Motor Paper Inserting Machine
Model No : C-500
Specially designed for Pump Motor / Induction Motor / Mono Block Motor Coil Winding Machines etc..
- Paper: Any grade
- Max Speed:2 slots per seconds
- Power: 220 V AC or 440V AC as per the model.
- Drive Motor:3 Phase 1 HP induction motor with thermal overload protection
- Power Consumption: 1 Kw
- Dimensions:470 *800*700mm
- Weight:300 Kgs
- Production: Average 250 Pcs per hour*
Pump Motor Coil Inserting Machine - SERVO CNC
Pump Motor Coil Inserting Machine - SERVO CNC
Fully advanced servo controlled Coil and Wedge Inserting Machine. Single/3 Phase, Servo Control, Paper Size and Machines parameters adjustments on user friendly HMI touch screen.
- Power: 220 Volts Single Phase/ 415V Three Phase
- Power Consumption:3 Kw
- Motor: SERVO
- Type: Coil + Wedge Inserter
- Control : SERVO CNC
- Paper Size: HMI
- Special Requirement: Air Input @ 4 to 5 bar for Arms Operation.
- Dimentions:1200 X 300 X 600
- Weight : 1000Kgs
- Production:Average 150pcs per hour*
Pump Motor Coil Shaping / Forming Machines
Fully Automatic Coil Winding Machine
Model : PRE SHAPING

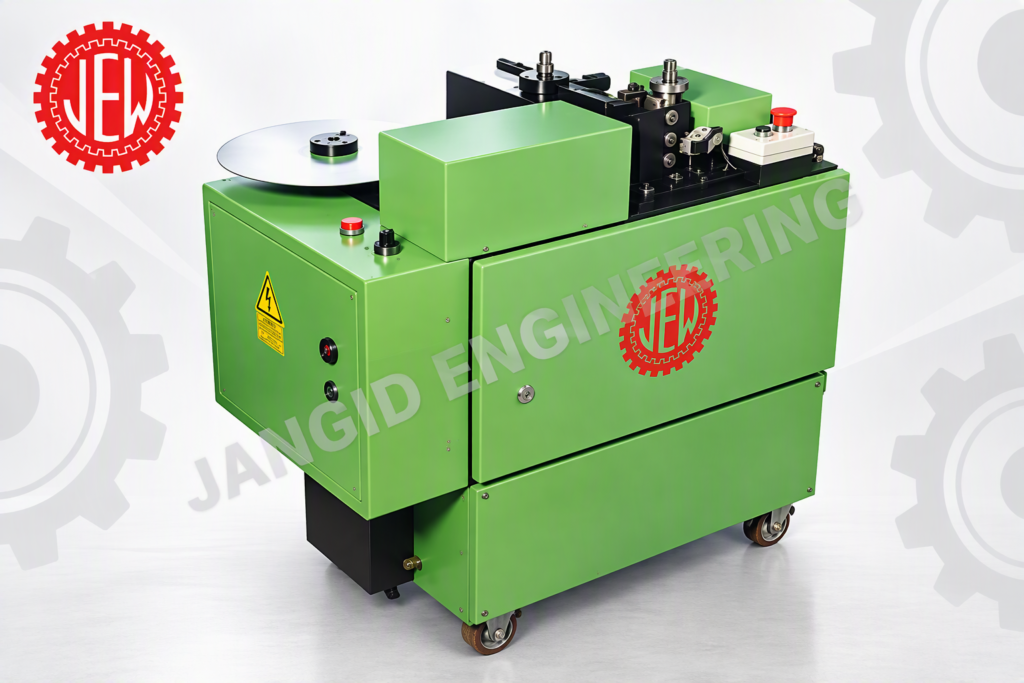

Fully Automatic Coil Forming Machine is equipped with PLC for precise control and smooth process capable of Shaping Coils with precision for TPW-FANS or Similar types.
- Power: 380V/415 V Three Phase
- Motor: 3 Phase 1.5 HP Induction Motor with thermal Overload Protection
- Weight : 400Kgs
- Power Consumption : 1.5 Kw
- Movement: Hydraulic
- Oil : SERVO 68 ( Not Included)
- Dimentions:600 X 500 X 1300
- Production:Average 200pcs per hour*
Pump Motor Coil Shaping / Forming Machines
Pump Motor Coil Shaping / Forming Machines
Model : FINAL SHAPING

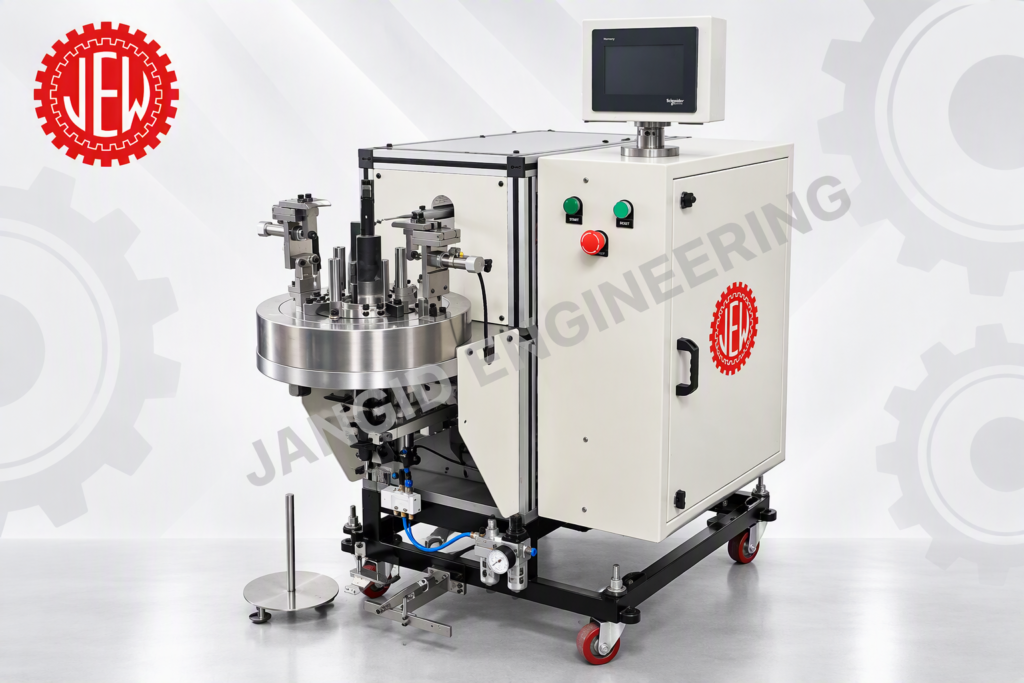

After Lacing this machine does final shaping very fast. Fully Automatic Coil Forming Machine is equipped with PLC for Precise Control and Smooth Process.
- Power: 380V/415 V Three Phase
- Motor: 3 Phase 1.5 HP Induction Motor with thermal Overload Protection
- Power Consumption : 1.5 Kw
- Movement: Hydraulic
- Control : PLC
- Oil : SERVO 68 ( Not Included)
- Dimentions:600 X 500 X 700
- Weight : 300Kgs
- Production:Average 200pcs per hour*
Pump Motor Coil Lacing Machine
Pump Motor Coil Lacing Machine

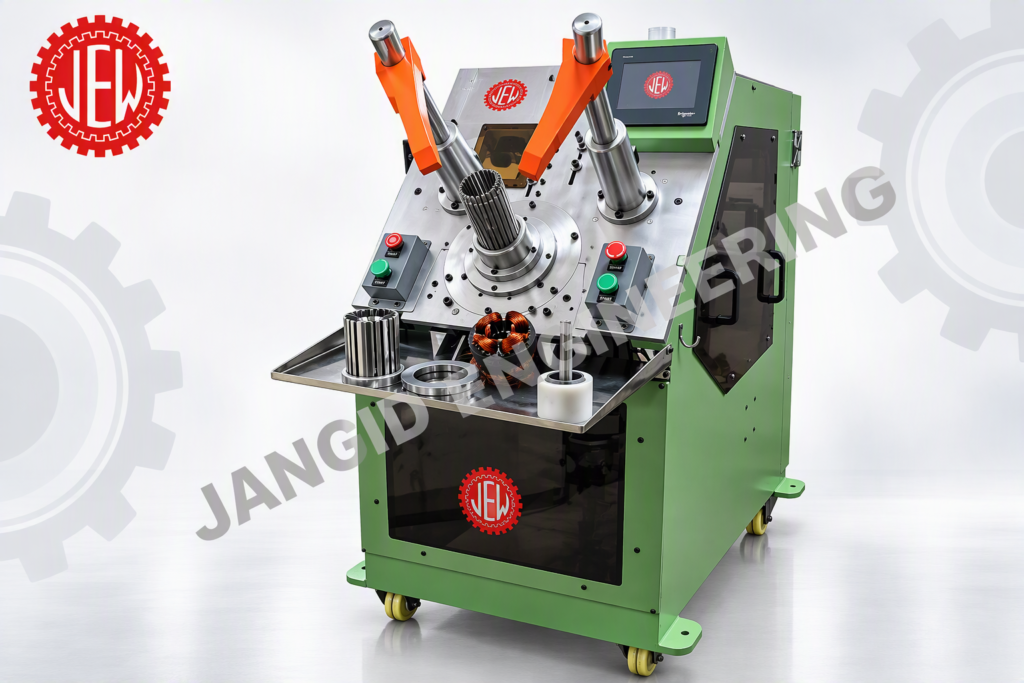

For Lacing of the Coil after Pre Shaping, Fully Automatic, PLC and Servo based control for precision, can do single side lacing. Single Phase, Servo Based Control, User Friendly HMI Touch Screen.
- Power Input: Single 220V
- Stator Thinckness: 10mm to 80mm
- Stator Diameter: 30mm to 150mm
- Index Motor : Stepper Motor, Servo Motor
- Max Spped: 6000RPM
- Power Consumption: 1 Kw
- Weight:300 Kgs
- Dimensions:1000*650*1300mm
- Production: Average 200 Pcs Per Hour*
- Air Input : 2 to 3 Bar
PUMP MOTOR HYDRAULIC SHAFT PRESSING MACHINE - AUTOMATIC / MANUAL
PUMP MOTOR HYDRAULIC SHAFT PRESSING MACHINE - AUTOMATIC / MANUAL
Model No : HP100
Available for generic or specific use for various operations like Shaft Press, Bearing Press etc. Available in Manual Model as well as Automatic Models with Safety Sensors..
- Power: 3 Phase 2 HP of motor depending on model and power selection
Manual Model: Lever Operated
Power Consumption 1 Kw to 2.5 Kw Weight 200 Kgs Production 300 to 400 Pcs per Hour* OIL SERVO 60 Automatic Model: Safety Curtain Sensors
Power Consumption 1.5 Kw to 3 Kw Weight 350 Kgs Production 350 to 500 Pcs per Hour*
PUMP MOTOR HYDRAULIC PRESS MACHINE - AUTOMATIC / MANUAL
PUMP MOTOR HYDRAULIC PRESS MACHINE - AUTOMATIC / MANUAL
Model No : HPA150
Table Fan Chapa can be pressed very precisely and sophisticated mechanism improves the tensile strength, available in both manual and auto models.
- Power Input: 3 Phase 2 HP motor with thermal overload protection
Manual Model: Lever Operated
Power Consumption 1 Kw Weight 200 Kgs Production 200 to 250 Pcs per Hour* OIL SERVO 60 Automatic Model: Safety Curtain Sensors
Power Consumption 1.5 Kw Weight 200 Kgs Production 250 to 300 Pcs per Hour*
PUMP MOTOR Hydraulic Riveting Machine ( Manual - Light Duty )
PUMP MOTOR Hydraulic Riveting Machine ( Manual - Light Duty )
We at JANGIR ENGINEERING WORKS, Continuously develop new machines for our esteemed customers. this is another result of our efforts. Every manufacturing industry wants to cut down cost of production in order to attain ore profits, even small things do matter. Hydraulic operated Lamination Riveting machine with our UNIQUE Fixture, will not only rivet, but can also flatten any type of lamination. As a result it can be used very easily in other process line. Ideal and easy to requirement. Separate Fixtures and dies make it flexible to use with any pressing application.
- Model : Lamination Straighening / Riveting Machine
- Cylinder: 1
- Drive : Hydraulic
- Power : 220V / 415 V, 50 Hz
- Motor: AC, 2 HP, Single Phase or 3 Phase
- Max Speed: 6mm/sec & Adjustable
- Load Capacity: 150 BAR
- Gross Weight:200 Kgs
- Max Net Weight:180 Kgs
- OIL: SERVO 60
PUMP MOTOR HYDRAULIC SHAFT PRESS MACHINE
PUMP MOTOR HYDRAULIC SHAFT PRESS MACHINE
Hydraulic Operated Press can be used widely for different applications like Shaft Press, Bearing Press, and other low pressure applications. Ideal and easy to use, time sving, zero maintenance stator riveting machines is available in various sizes to suite customers specific requirement. No periodic maintenance required for this machine, equipped with compact power pack it is just plug and play hydraulic shaft press. Separate Fixtures and dies make it flexible to use with any pressing application.
- Model : Lamination Shaft Press Machine
- Cylinder: 1
- Drive : Hydraulic
- Power : 220V / 415 V, 50 Hz
- Motor: AC, 1 HP, Single Phase or 3 Phase
- Max Speed: 6mm/sec & Adjustable
- Load Capacity: 50 – 80 BAR MAX
- Gross Weight:190 Kgs
- Max Net Weight:160 Kgs
- OIL: SERVO 60
